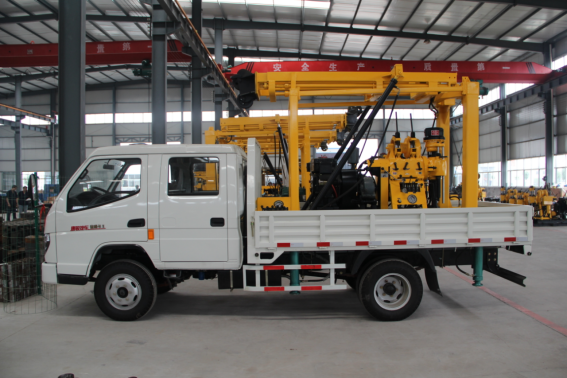

XYC-200 vehicle mounted drilling rig
XYC-200Introduction and parameters of vehicle mounted drilling rig1. XYC-200 vehicle mounted drilling rig is a multifunctional hydraulic vehicle mounted vertical axis rotary drilling rig2. The car chassis adopts Tang Jun Jinlika car chassis, and the drilling rig transmission system, winc
- Model：
- Rated power： Request a quote
XYC-200Introduction and parameters of vehicle mounted drilling rig
1. XYC-200 vehicle mounted drilling rig is a multifunctional hydraulic vehicle mounted vertical axis rotary drilling rig
2. The car chassis adopts Tang Jun Jinlika car chassis, and the drilling rig transmission system, winch, mud pump and other important accessories are installed on this chassis, with a reasonable and compact layout and easy operation
3. Configure BW-160 mud pump with high pressure and large flow rate to ensure drilling depth and diameter
4. The drilling rig is equipped with a mobile device, which can realize the forward and backward movement of the drilling rig host, making it easy to operate at the wellhead
5. The hydraulic lifting and automatic telescopic drilling tower of the drilling rig tower is safe and convenient to operate.
Scope of adaptation:
Geological survey and exploration, road and high-rise building foundation exploration, as well as various concrete structure inspection holes, river embankments, roadbed grouting hole drilling and direct grouting, civil water wells and geothermal central air conditioning, etc.
Technical Parameter | ||||
钻孔深度（m） | 30-200 | |||
钻孔直径（mm） | 300-75 | |||
钻孔倾角（°） | 90-75 | |||
立轴转速（r/min） | 64、128、287、557 | |||
立轴行程（mm） | 450 | |||
主卷扬提升能力（单绳）（Kg） | 1600 | |||
主卷扬容绳量（m） | 35 | |||
卷筒提升速度（r/s） | 17、35、75、151 | |||
钢丝绳直径（mm） | 12.5 | |||
塔高（mm） | 7000 | |||
钻塔有效高度（mm） | 6500 | |||
主动钻杆(mm) | 59*53 | |||
钻杆（mm） | 42、50、60 | |||
钻机重量（kg） | 1150 | |||
发动机 | 型号： ：ZS1115柴油发动机 | |||
额定功率14.7kw/2200rpm | ||||
BW-160型泥浆泵 | 额定流量（L/min） | 160 | ||
额定压力（Mpa） | 1.3 | |||
驱动功率（kw) | 5.15 | |||
主机重量（kg） | 190 | |||
外形尺寸（mm） | 1110*725*965 | |||
汽车底盘 | 型号 | 唐骏欧铃 金利卡 95马力 3.3米双排栏板轻卡 | ||
驱动形式 | 4×2 | |||
发动机 | 型号 | 全柴 4B2-95C40 | ||
排放标准 | GB3847-2005,GB17691-2005国Ⅳ | |||
额定功率(KW) | 70 | |||
转速(r/min) | 3200 | |||
