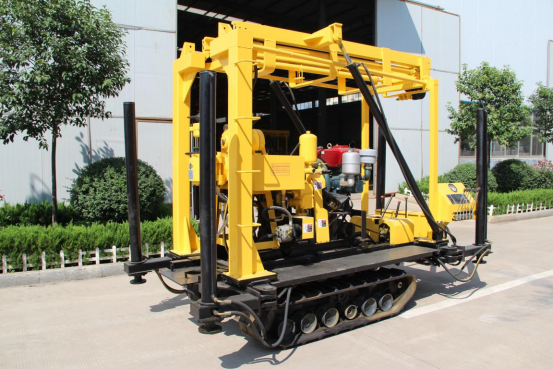

XYD-130Introduction and parameters of crawler drill

1. The drilling rig adopts an automatic telescopic drill tower supported by two high-strength oil cylinders, and a group of hydraulic valves control the drill tower to lie on its back, which saves time and effort in operation, is safe and reliable, and creates benefits for users to the greatest extent.

2. The chassis adopts rubber crawler, which is light in weight and low in life cycle cost. It can reduce the noise of vehicle running mechanism, reduce the vibration of vehicle body, and greatly reduce the fuel consumption. It can walk on urban roads without damaging the road surface.

3. The chassis is equipped with four high-strength threaded legs (or hydraulic high legs) which can be installed and adjusted quickly and conveniently, and can be used for leveling the working plane. The loading and unloading truck can reduce the lifting cost and improve the efficiency, and can be used as an auxiliary support during work.

4. The 48V electric starting diesel engine greatly reduces the labor intensity of the operator, especially in cold seasons, when the diesel engine is difficult to start, it shows great advantages.

5. This machine is equipped with bw-160 independent mud pump, with large pump flow and pressure, convenient maintenance, and spare parts are convenient to purchase all over the country.

6. The optional models are xyd-200/xyd-180/xyd-130.

7. Optional installation of hydraulic pipe twisting machine to improve work efficiency and reduce labor costs.
